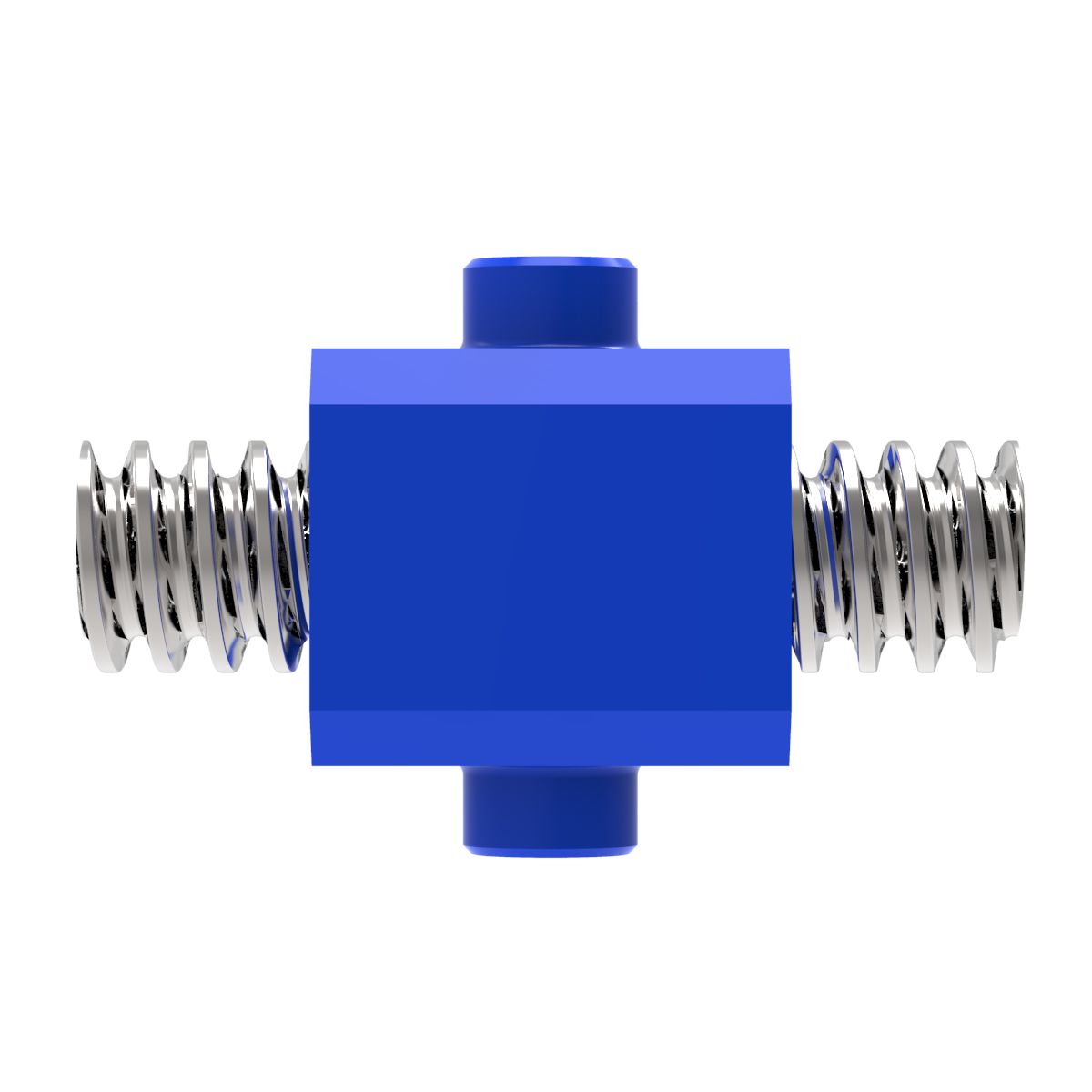

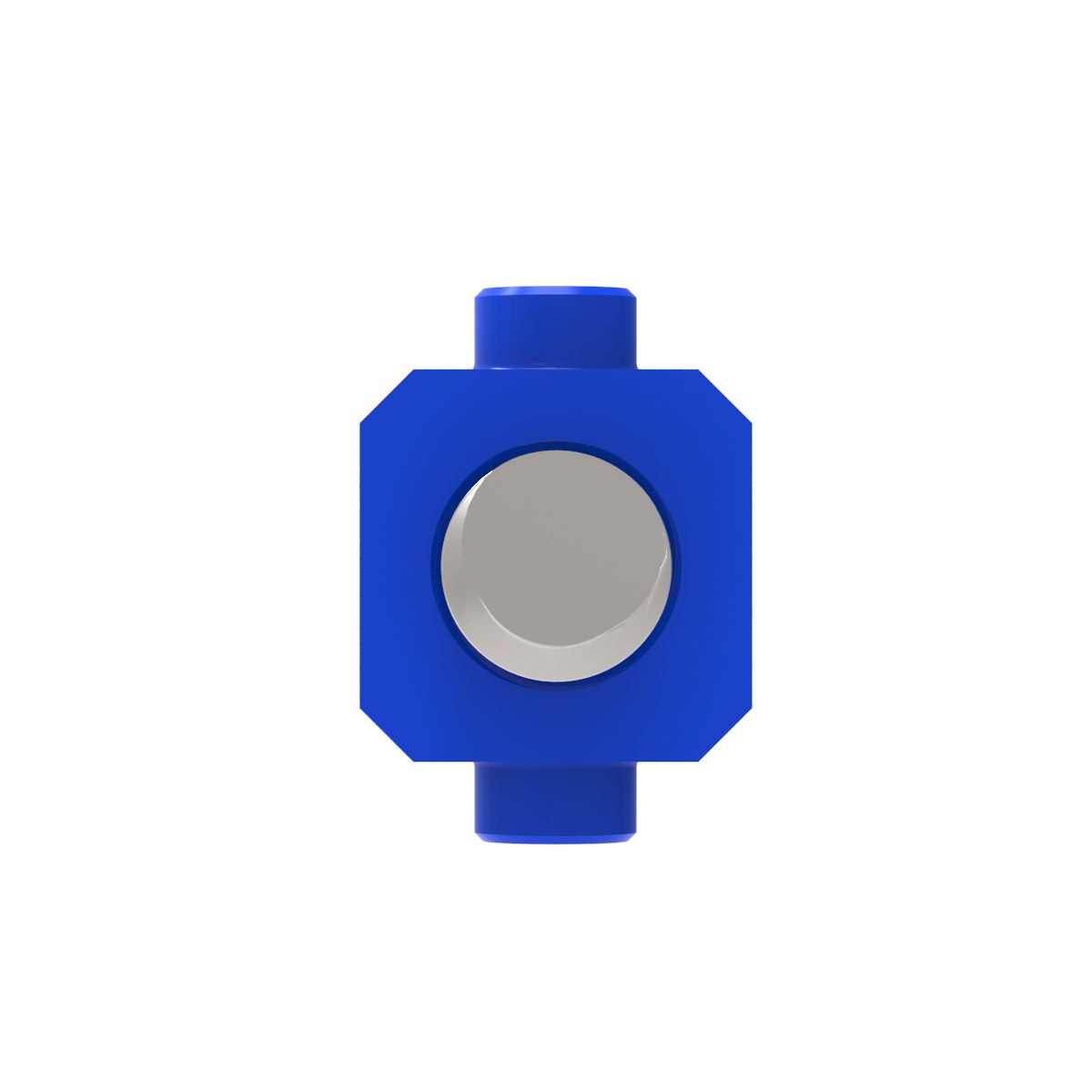

Name: Trunnion Mount Nut (TMA)
SKU: 299999
Price: 75.06 USD
Availability: InStock

Anti-Backlash Nut Life with H10X Coating (in)	NA - Typical Backlash 0.003 to 0.011
Connection Type	Flanged

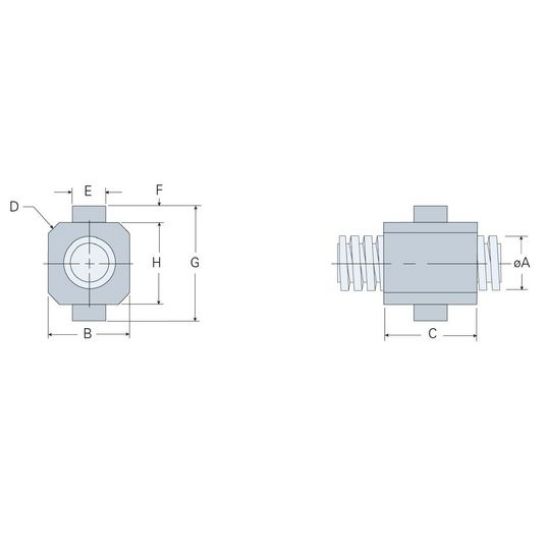

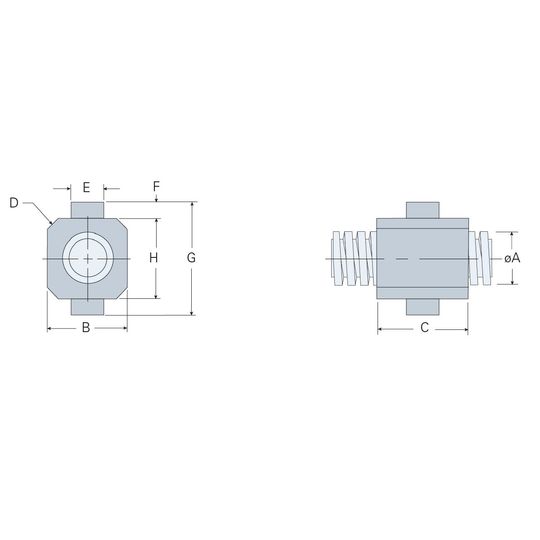

D - Chamfer Width (in)	0.100
Diameter Code	50
Dynamic Load Capacity (lbs)	200
Efficiency (%)	82.66121921
F - Trunion Height (in)	0.188
G - Width over Pins (in)	1.063
H - Nut Body Width (in)	0.688
Imperial or Metric	TRUE
Lead (in)	0.800
Lead Accuracy +/- (in/in)	0.0003
Lead Code	800
Lead Time	2 Weeks
Material	Helital
Mating Screw Part No	050800R
Maximum Axial Lash (in)	FALSE
Nominal Diameter A (in)	0.500
Nut Code	TMA
Nut Height B (in)	0.688
Nut Length C (in)	0.625
Nut Size	5
Nut Type	Standard nut with trunion style mount
Nut Weight (lb)	0.04
Pitch (in)	0.100
Pitch (mm)	2.540
Product Category	Lead Screw Nut
Product Sub Category	Freewheeling
Product Sub Category 1	Trunnion Mount Nuts
Standard Operating Temperature Range (F°)	32-200
Starts	8
Thread Class	2C
Thread Direction	RH
Thread Type	Acme
Threads Per Inch	10
Turns Per Inch of Travel (in)	1.250
Type 1,2,3	10
Type 4	6

Trunnion Mount Nut (TMA) TMA050800R
