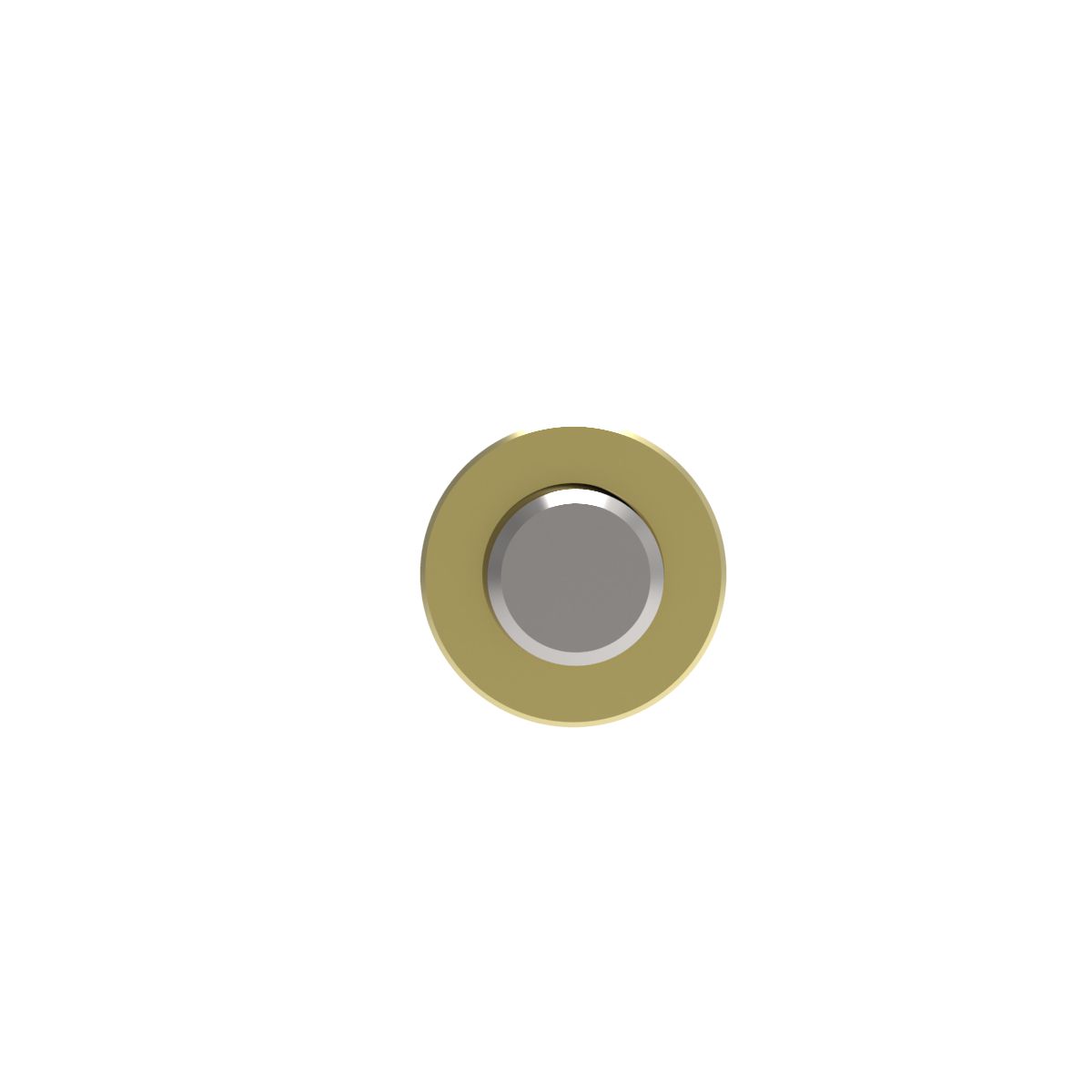

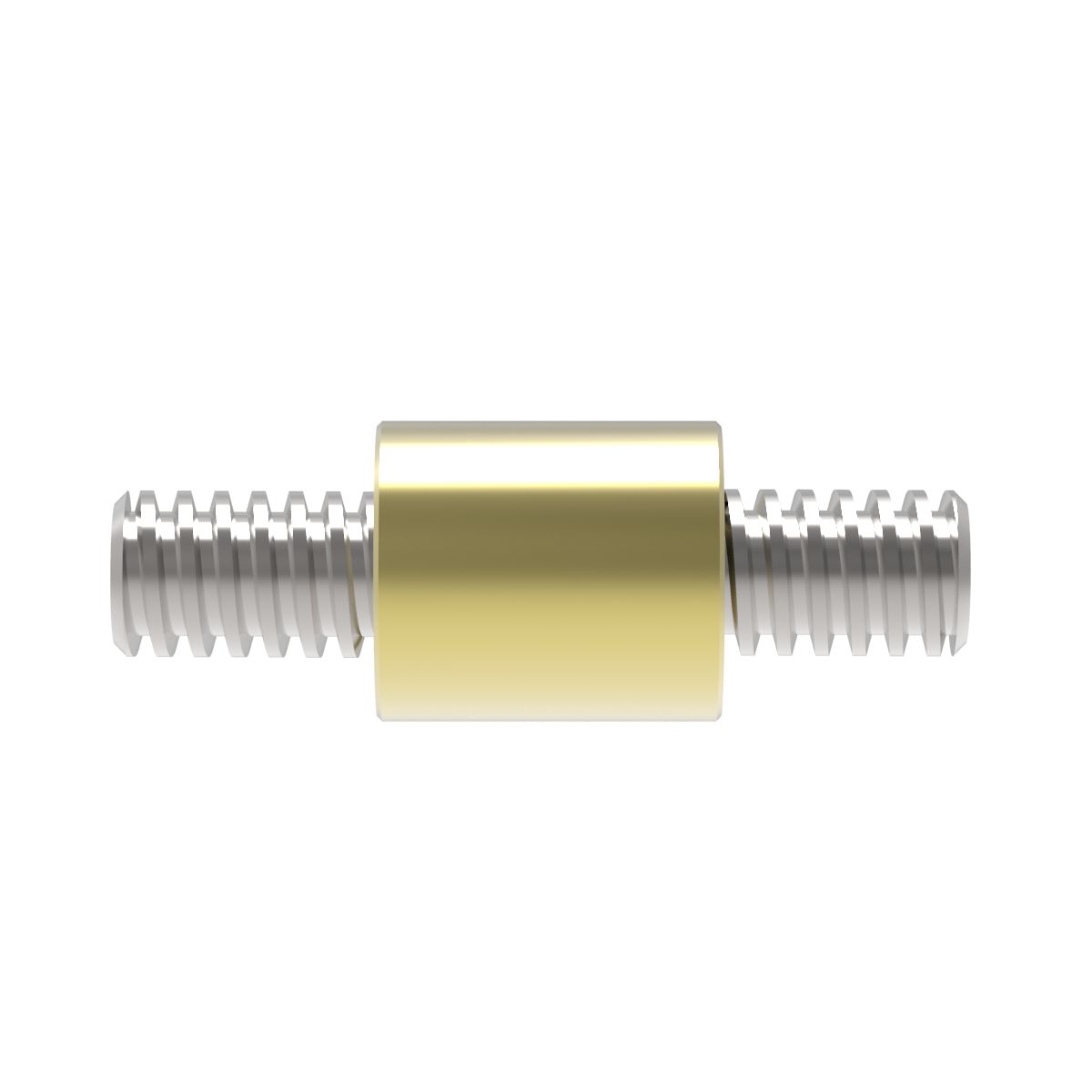

Name: Sleeve Nut (SMB)
SKU: 299052
Price: 57.11 USD
Availability: InStock

Diameter Code	024
Dynamic Load Capacity (lbs)	75
Efficiency (%)	72.31781484
Imperial or Metric	FALSE
Lead (mm)	12
Lead Accuracy +/- (in/in)	0.0003
Lead Code	472
Lead Time	2 Weeks
Material	Bronze
Mating Screw Part No	024472L
Maximum Axial Lash (in)	FALSE

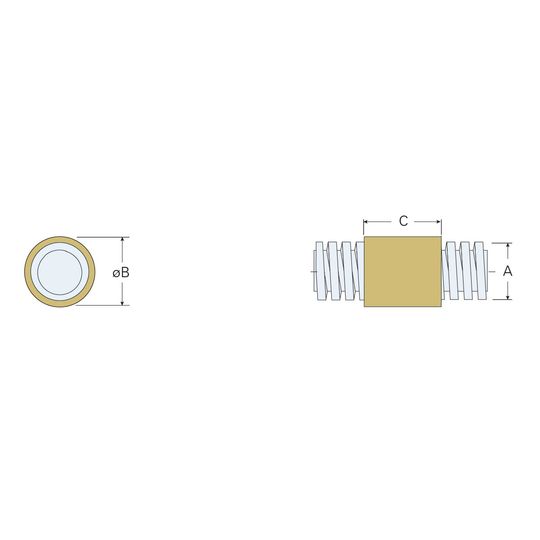

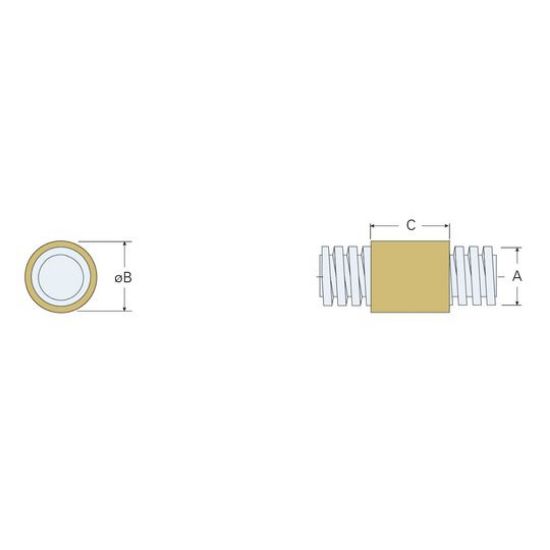

Nominal Diameter A (mm)	6
Nut Code	SNB
Nut Diameter B (in)	0.500
Nut Length C (in)	0.500
Nut Size	1
Nut Type	Sleeve Nut
Pitch (in)	0.059
Pitch (mm)	1.500
Product Category	Lead Screw Nut
Product Sub Category	Standard
Product Sub Category 1	Freewheeling
Standard Operating Temperature Range (F°)	32 - 200
Starts	8
Static Load Capacity (lbs)	500
Thread Class	Centralizing
Thread Direction	LH
Thread Type	High Helix
Threads Per Inch	16.93333136
Torque to Raise 1 lb (in-lb)	0.1039644177
Turns Per Inch of Travel	2.11666642
Type 1,2,3	4
Type 4	2

Sleeve Nut (SMB) SNB024472L
