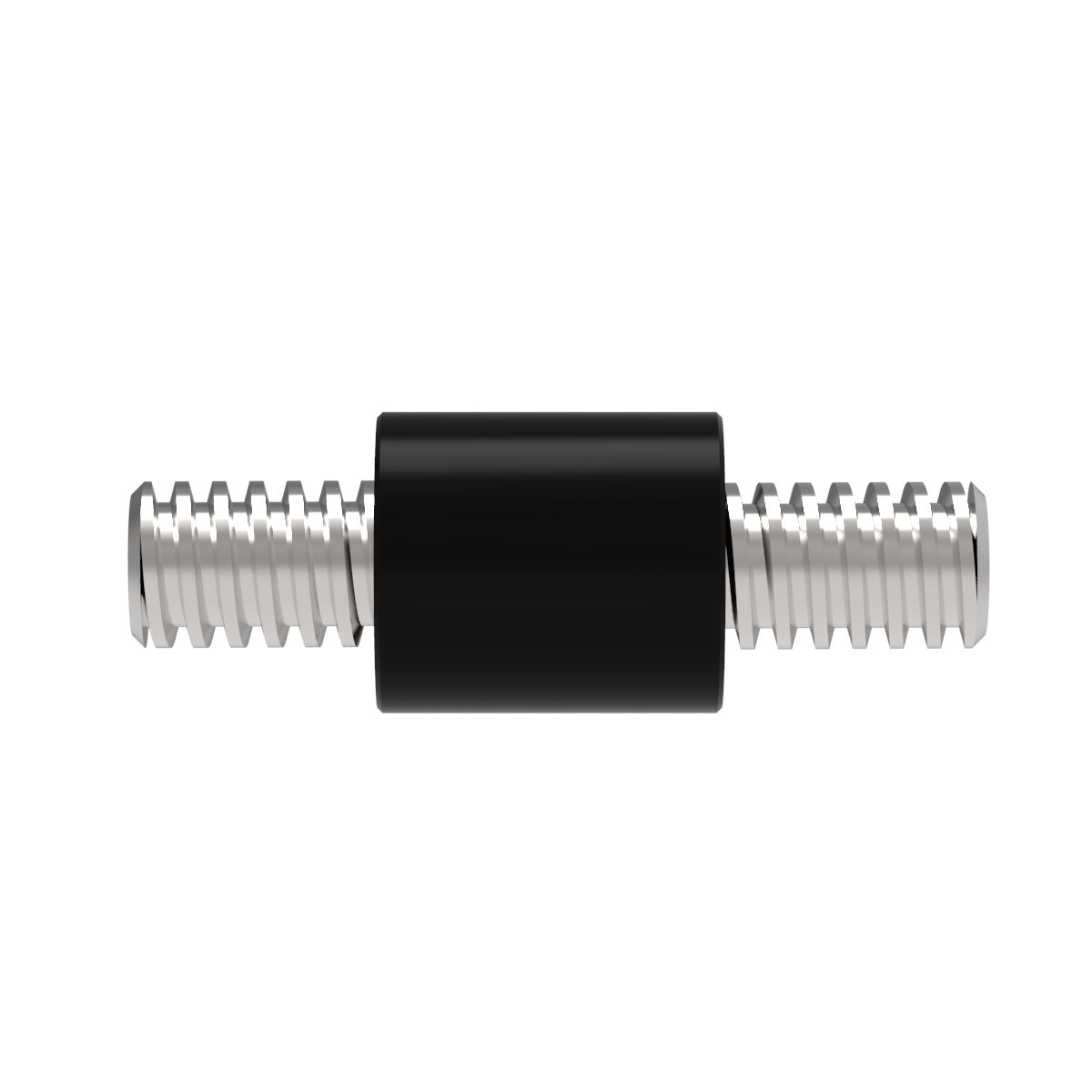

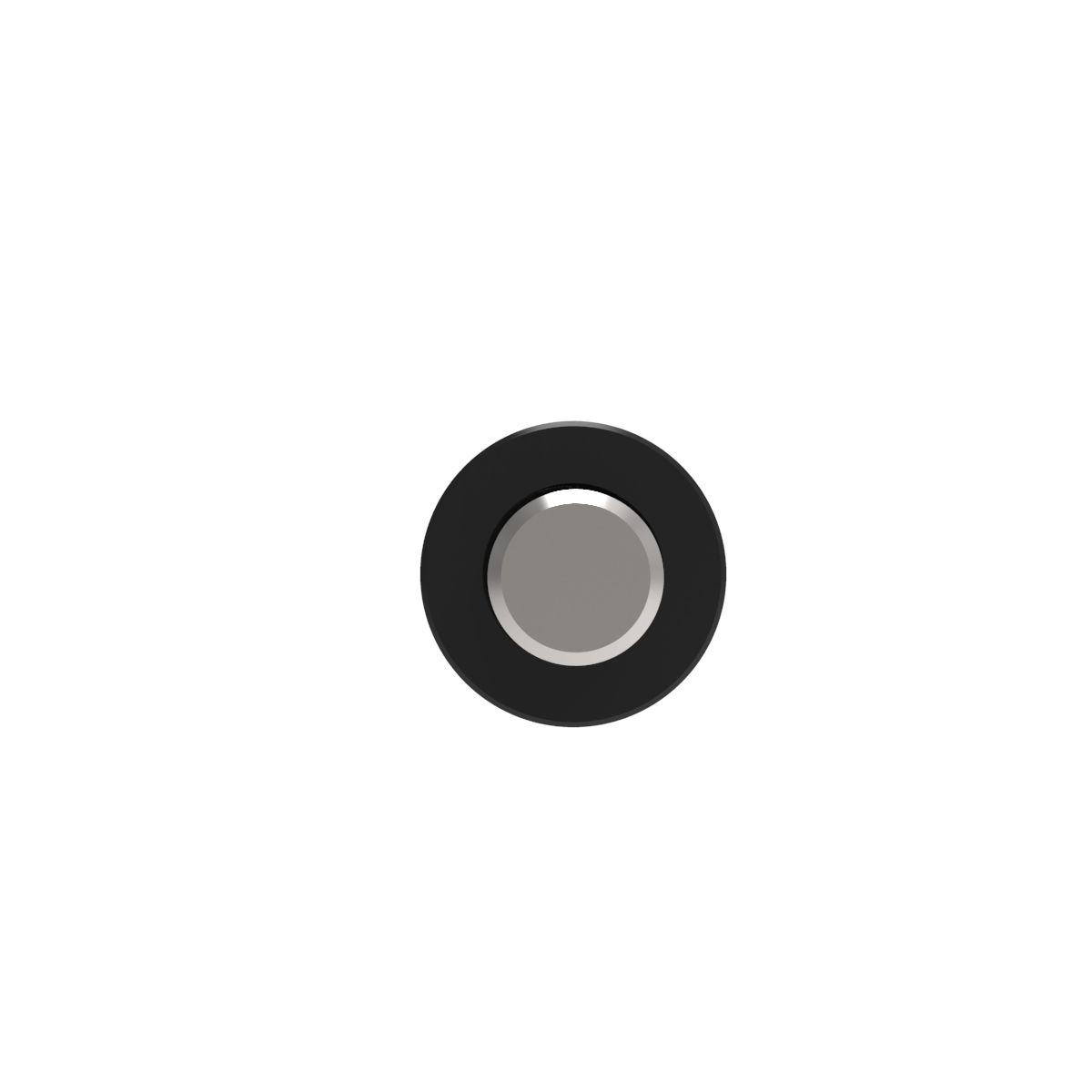

Name: Sleeve Nut (SNA)
SKU: 298628
Availability: InStock

Diameter Code	037
Dynamic Load Capacity (lbs)	350
Efficiency (%)	49.08394682
Imperial or Metric	TRUE
Lead (in)	0.083
Lead Accuracy +/- (in/in)	0.0003
Lead Code	83
Lead Time	2 Weeks
Material	Acetal
Mating Screw Part No	037083L
Maximum Axial Lash (in)	FALSE

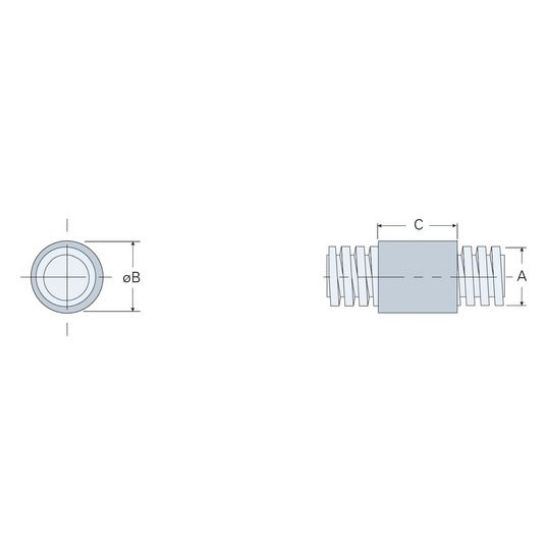

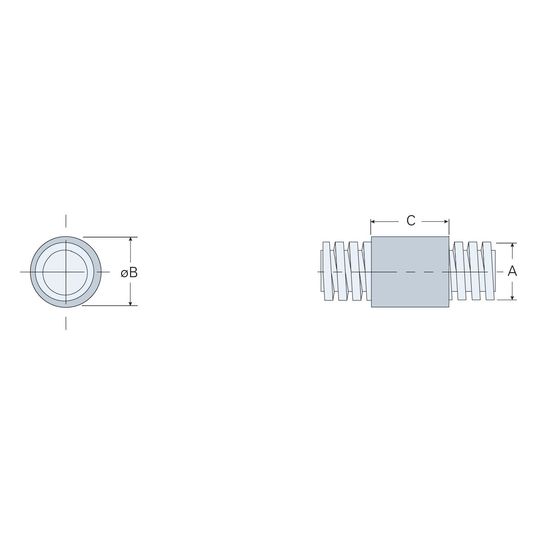

Nominal Diameter A (in)	0.375
Nut Code	SNA
Nut Diameter B (in)	0.750
Nut Length C (in)	0.750
Nut Size	2
Nut Type	Sleeve Nut
Pitch (in)	0.083
Pitch (mm)	2.116
Product Category	Lead Screw Nut
Product Sub Category	Standard
Product Sub Category 1	Freewheeling
Standard Operating Temperature Range (F°)	32 - 200
Starts	1
Static Load Capacity (lbs)	560
Thread Class	Centralizing
Thread Direction	LH
Thread Type	Modified Acme
Threads Per Inch	12.00480192
Torque to Raise 1 lb (in-lb)	0.02701006667
Turns Per Inch of Travel	12.00480192
Type 1,2,3	7*
Type 4	4

Sleeve Nut (SNA) SNA037083L
