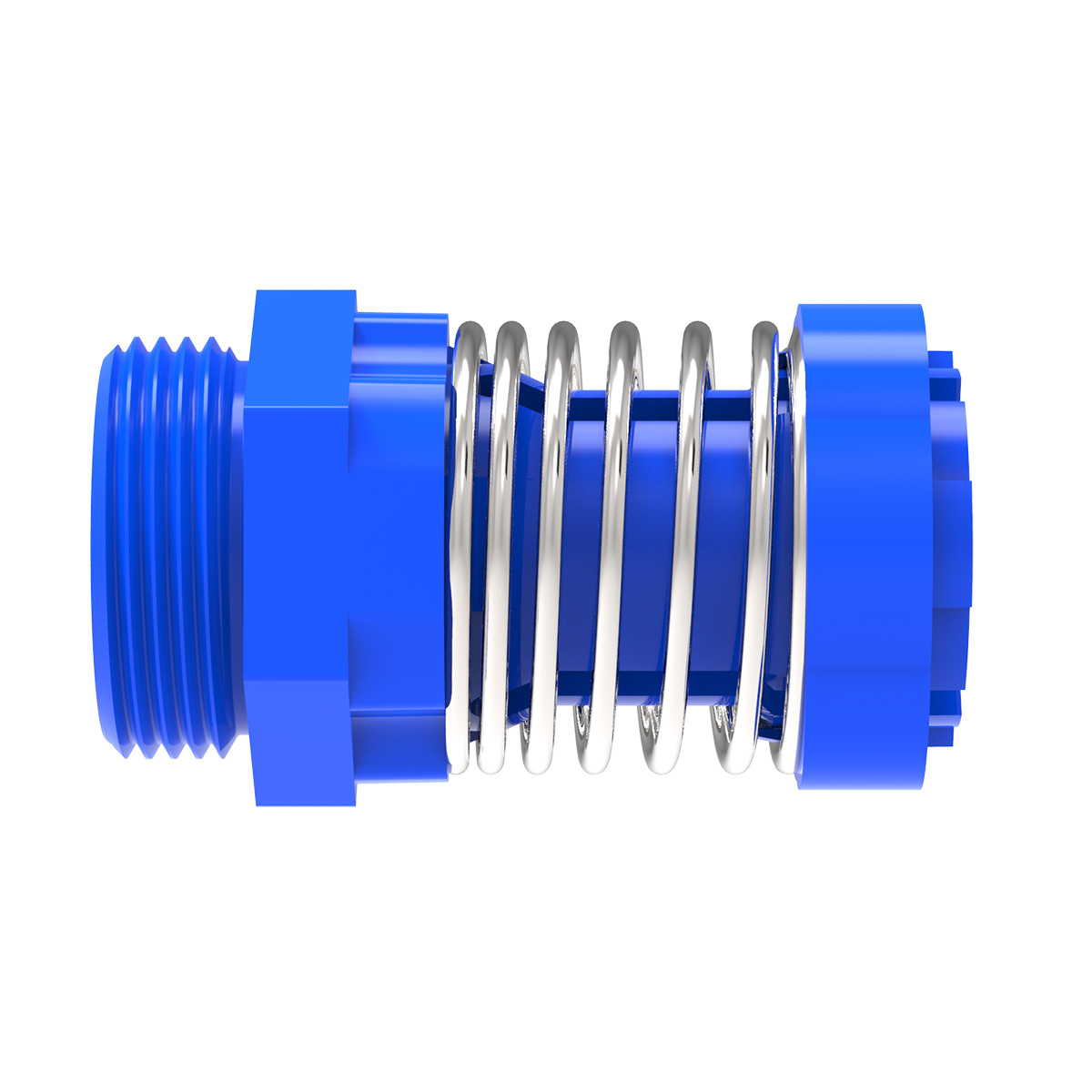

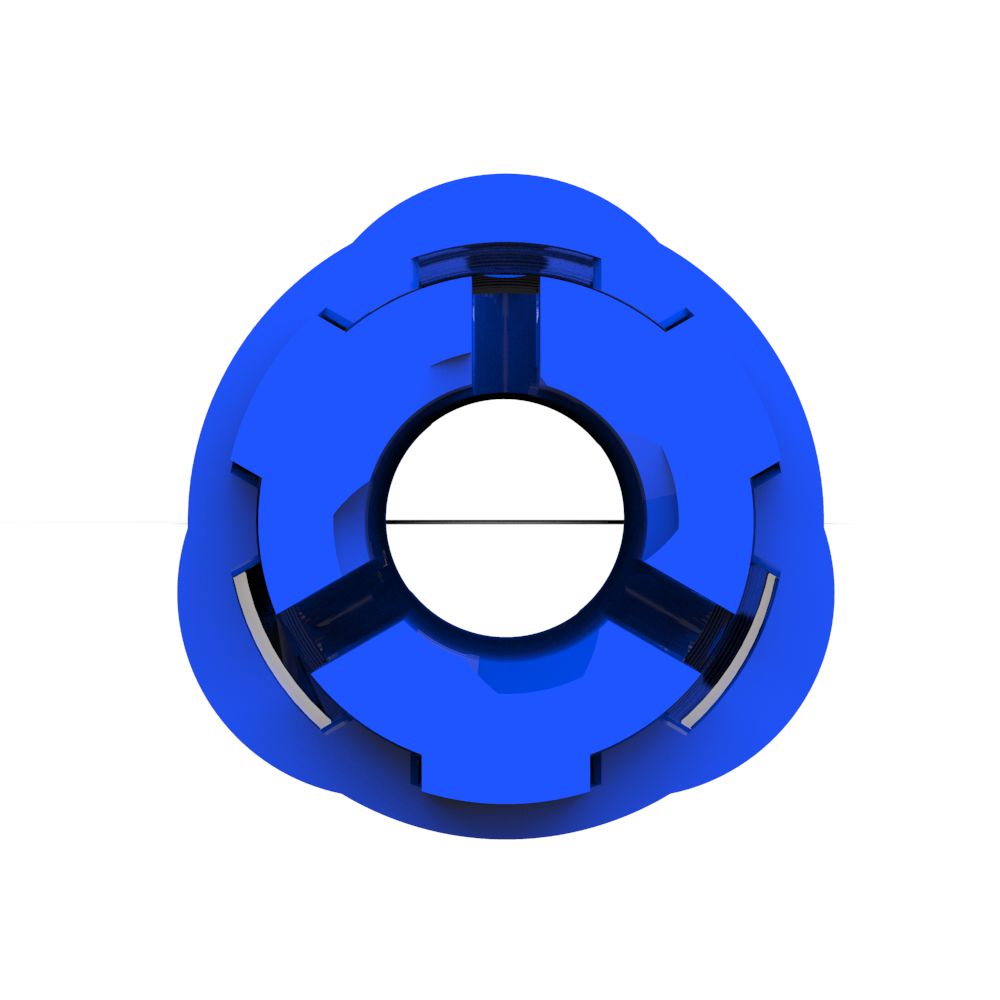

Name: Threaded Radial Anti-Backlash Nut (RTA)
SKU: 285186
Price: 137.12 USD
Availability: InStock

Anti-Backlash Nut Life with H10X Coating (in)	NA - Typical Backlash 0.003 to 0.011
Connection Type	Threaded
Diameter Code	71
Dynamic Load Capacity (lbs)	350
Efficiency (%)	76.62399547
Flange Part No - Round	HF60

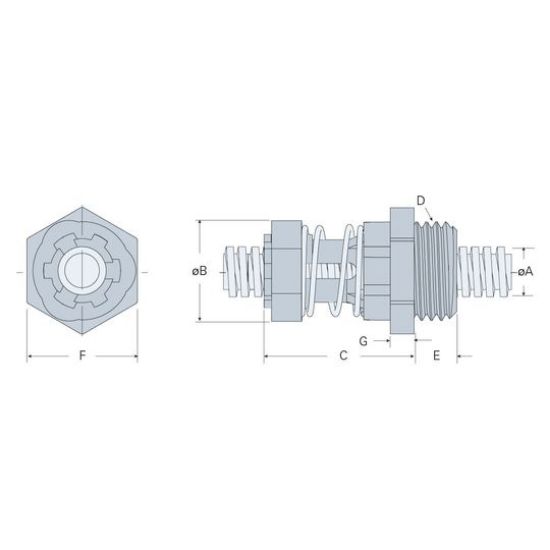

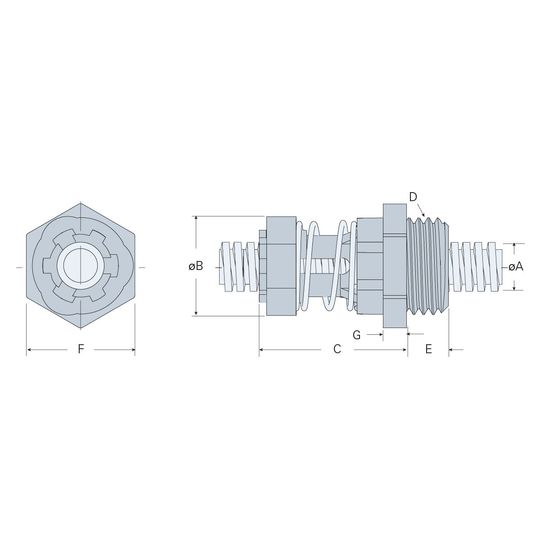

Hex Across Flats F (in)	1.120
Hex Thickness G (in)	0.250
Imperial or Metric	FALSE
Lead (mm)	16
Lead Accuracy +/- (in/in)	0.0003
Lead Code	629
Lead Time	2 Weeks
Material	Helital
Mating Screw Part No	071629R
Maximum Axial Lash (in)	FALSE
Nominal Diameter A (mm)	18
Nut Code	RTA
Nut Diameter B (in)	1.275
Nut Length C (in)	2.130
Nut Size	5
Nut Type	Radial Anti-Backlash Nut with mounting threads
Nut Weight (lbs)	0.06
Pitch (in)	0.157
Pitch (mm)	4.000
Product Category	Lead Screw Nut
Product Sub Category	Anti-Backlash Nut
Product Sub Category 1	Radial
Standard Operating Temperature Range (F°)	32-200
Starts	4
Thread Class	Centralizing
Thread Direction	RH
Thread Length E (in)	0.370
Thread Size D (in)	1-1/16-16 UN
Thread Type	High Helix
Threads Per Inch	6.35021432
Turns Per Inch of Travel (in)	1.588
Type 1,2,3	12
Type 4	8

Threaded Radial Anti-Backlash Nut (RTA) RTA071629R
