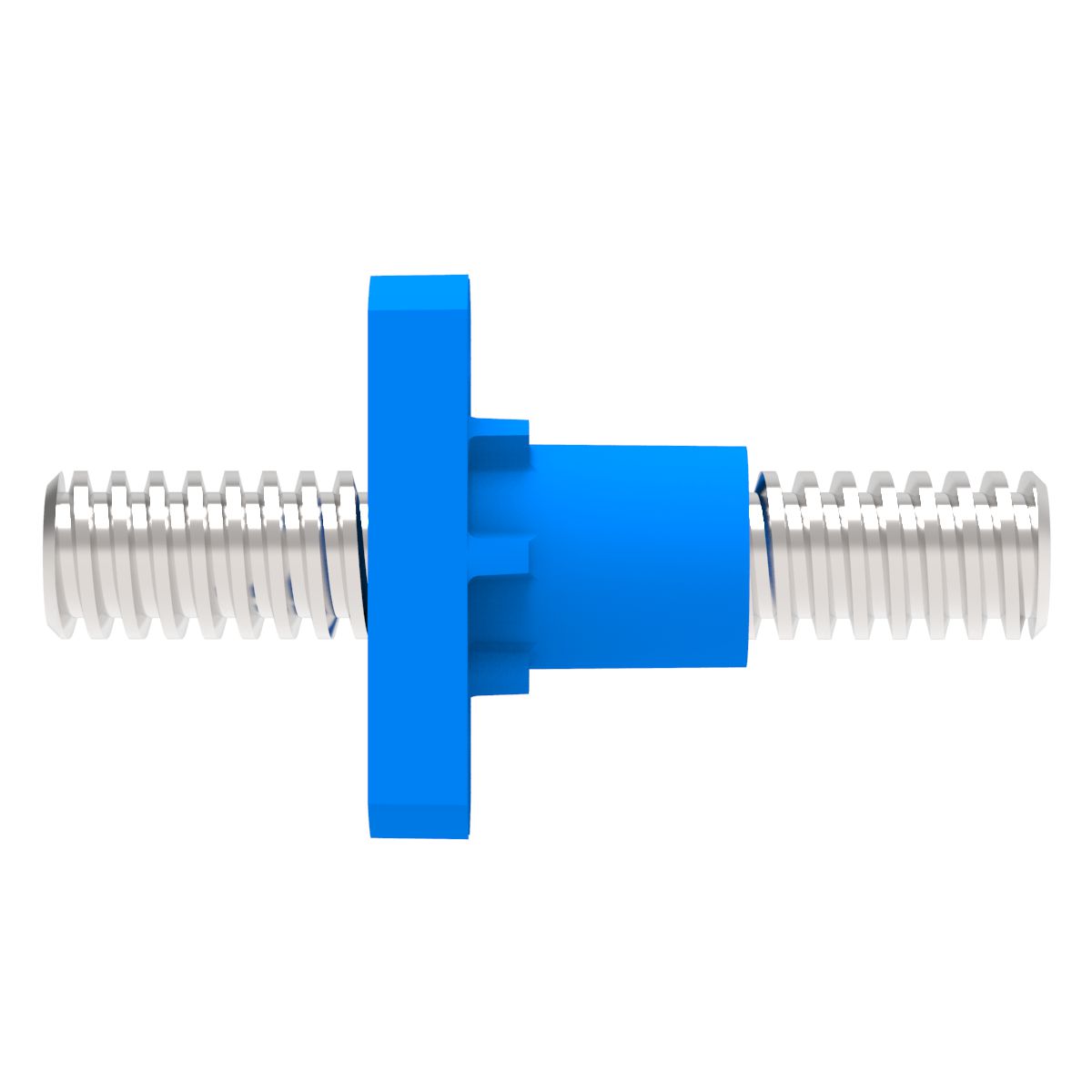

Name: Flanged Standard Freewheeling Nut (NFA)
SKU: 277833
Price: 25.70 USD
Availability: InStock

Anti-Backlash Nut Life with H10X Coating (in)	NA - Typical Backlash 0.003 to 0.011
Connection Type	Flanged

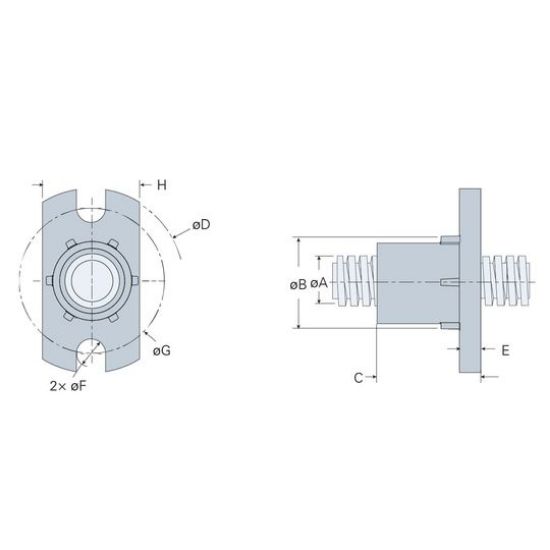

D - Flange Diameter (in)	0.750
Diameter Code	18
Dynamic Load Capacity (lbs)	35
E - Flange Height (in)	0.400
Efficiency (%)	49.17690965
G - Slot Width (in)	0.120
H - Bolt Circle Diameter (in)	0.600
Imperial or Metric	TRUE
Lead (in)	0.050
Lead Accuracy +/- (in/in)	0.0003
Lead Code	50
Lead Time	2-3 Days
Material	Helital
Mating Screw Part No	SP018050R
Maximum Axial Lash (in)	FALSE
Nominal Diameter A (in)	0.188
Nut Code	NFA
Nut Diameter B (in)	0.400
Nut Length C (in)	0.500
Nut Size	1
Nut Type	Standard nut with mounting flange
Nut Weight (lb)	0.02
Pitch (in)	0.050
Pitch (mm)	1.270
Product Category	Lead Screw Nut
Product Sub Category	Freewheeling
Product Sub Category 1	Standard
Standard Operating Temperature Range (F°)	32-200
Starts	1
Thread Class	Centralizing
Thread Direction	RH
Thread Type	Modified Acme
Threads Per Inch	20
Turns Per Inch of Travel (in)	20
Type 1,2,3	4*
Type 4	2

Flanged Standard Freewheeling Nut (NFA) NFASP018050R
