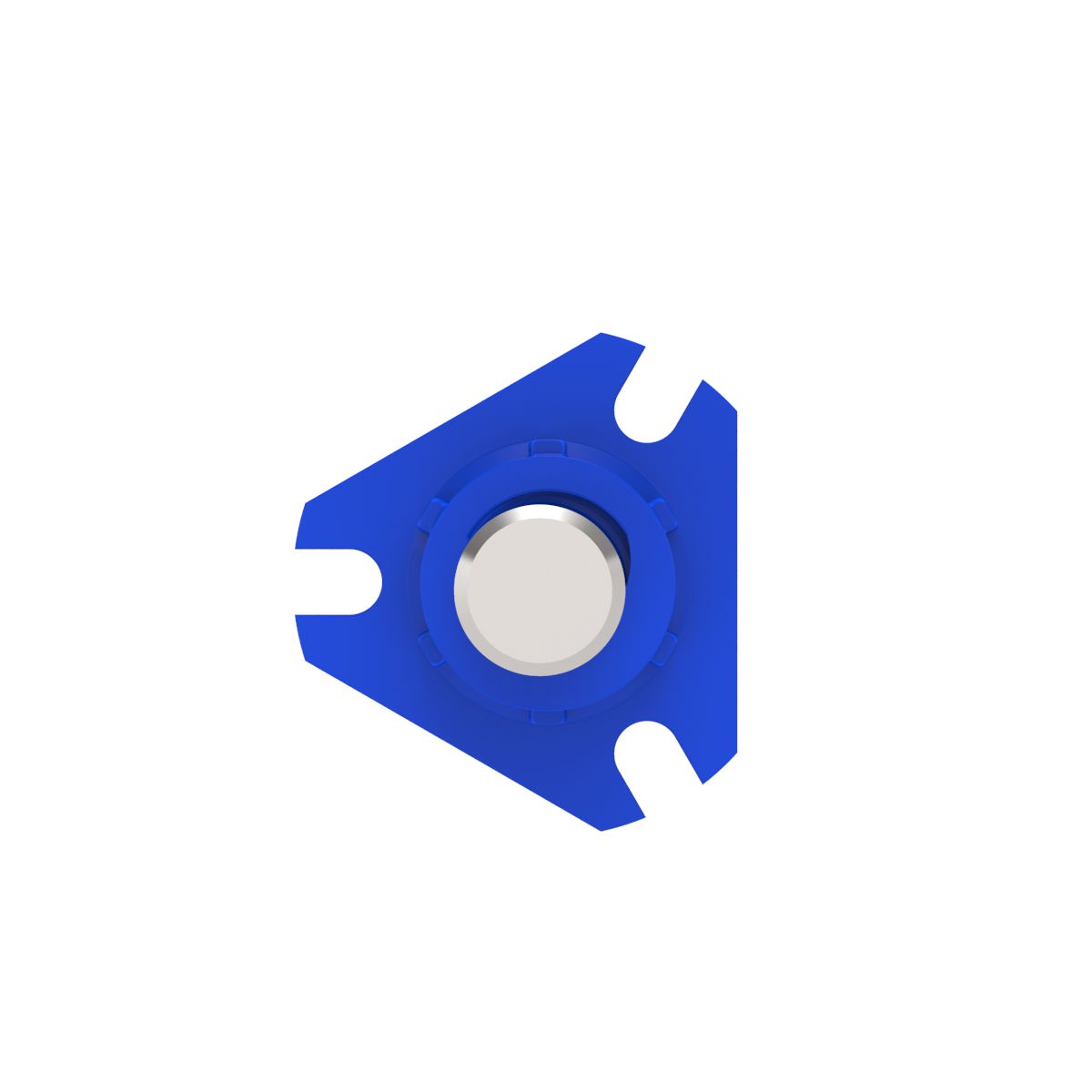

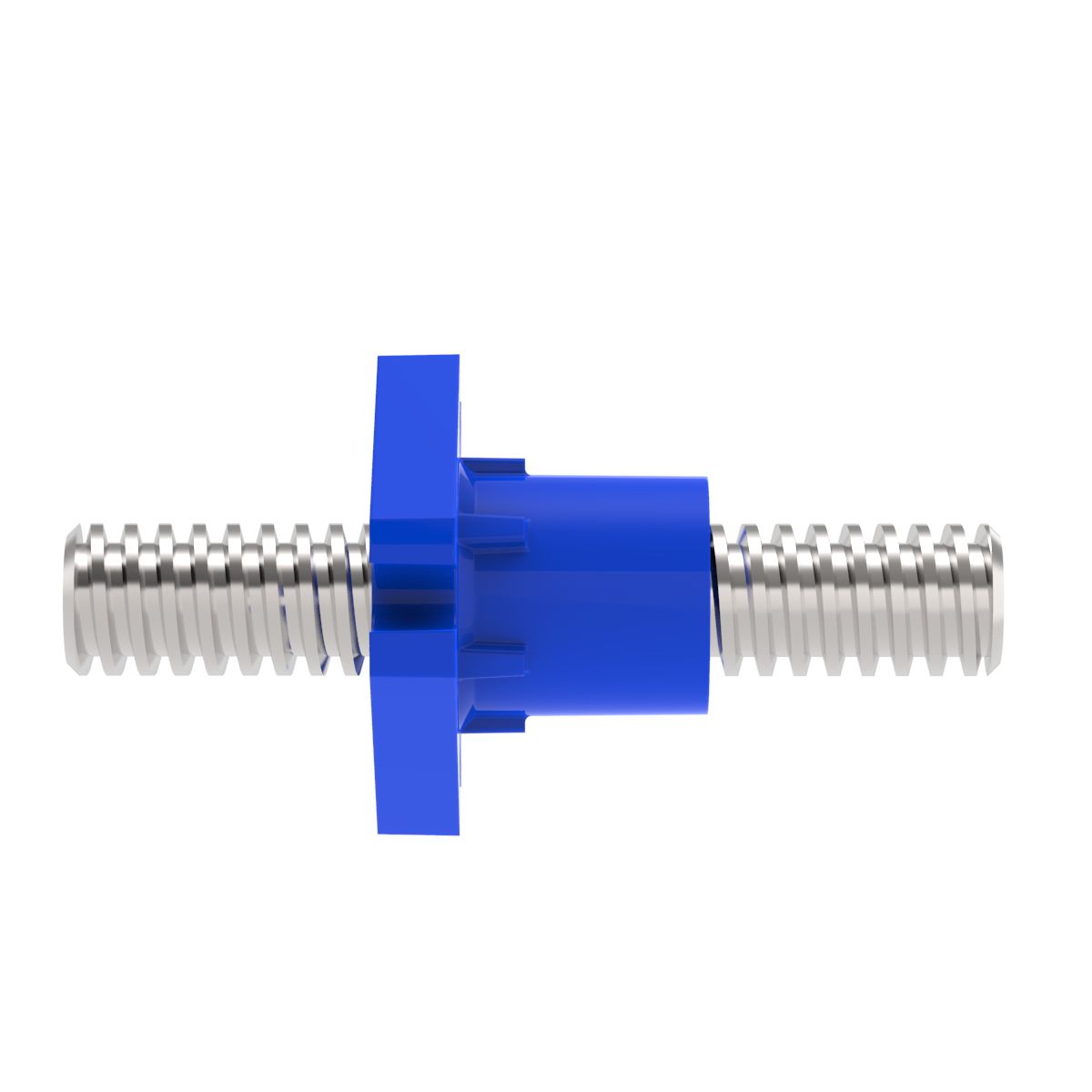

Name: Flanged Standard Freewheeling Nut (NFA)
SKU: 277710
Price: 67.01 USD
Availability: InStock

Anti-Backlash Nut Life with H10X Coating (in)	150-200 Million
Connection Type	Flanged

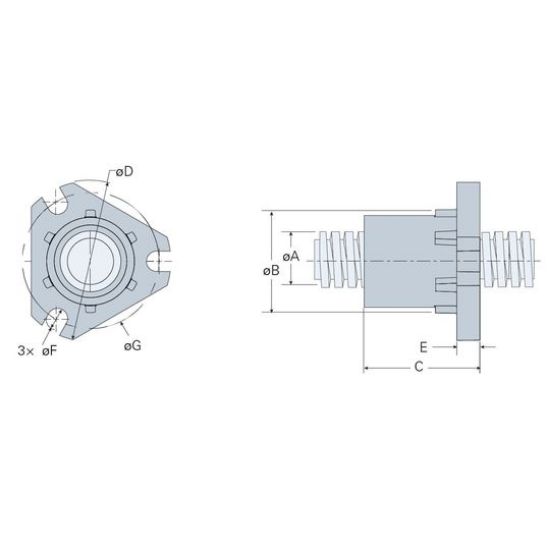

D - Flange Diameter (in)	1.750
Diameter Code	71
Dynamic Load Capacity (lbs)	350
Efficiency (%)	80.73638016
G - Slot Width (in)	0.221
H - Bolt Circle Diameter (in)	1.438
Imperial or Metric	FALSE
Lead (mm)	100
Lead Accuracy +/- (in/in)	0.0003
Lead Code	M00
Lead Time	2-3 Days
Material	Helital
Mating Screw Part No	071M00R
Maximum Axial Lash (in)	FALSE
Nominal Diameter A (mm)	18
Nut Code	NFA
Nut Diameter B (in)	1.125
Nut Length C (in)	1.250
Nut Size	5
Nut Type	Standard nut with mounting flange
Nut Weight (lb)	0.06
Pitch (in)	0.197
Pitch (mm)	5.000
Product Category	Lead Screw Nut
Product Sub Category	Freewheeling
Product Sub Category 1	Standard
Standard Operating Temperature Range (F°)	32-200
Starts	20
Thread Class	Centralizing
Thread Direction	RH
Thread Type	High Helix
Threads Per Inch	5.08001016
Turns Per Inch of Travel (in)	0.254
Type 1,2,3	15
Type 4	10

Flanged Standard Freewheeling Nut (NFA) NFA071M00R
