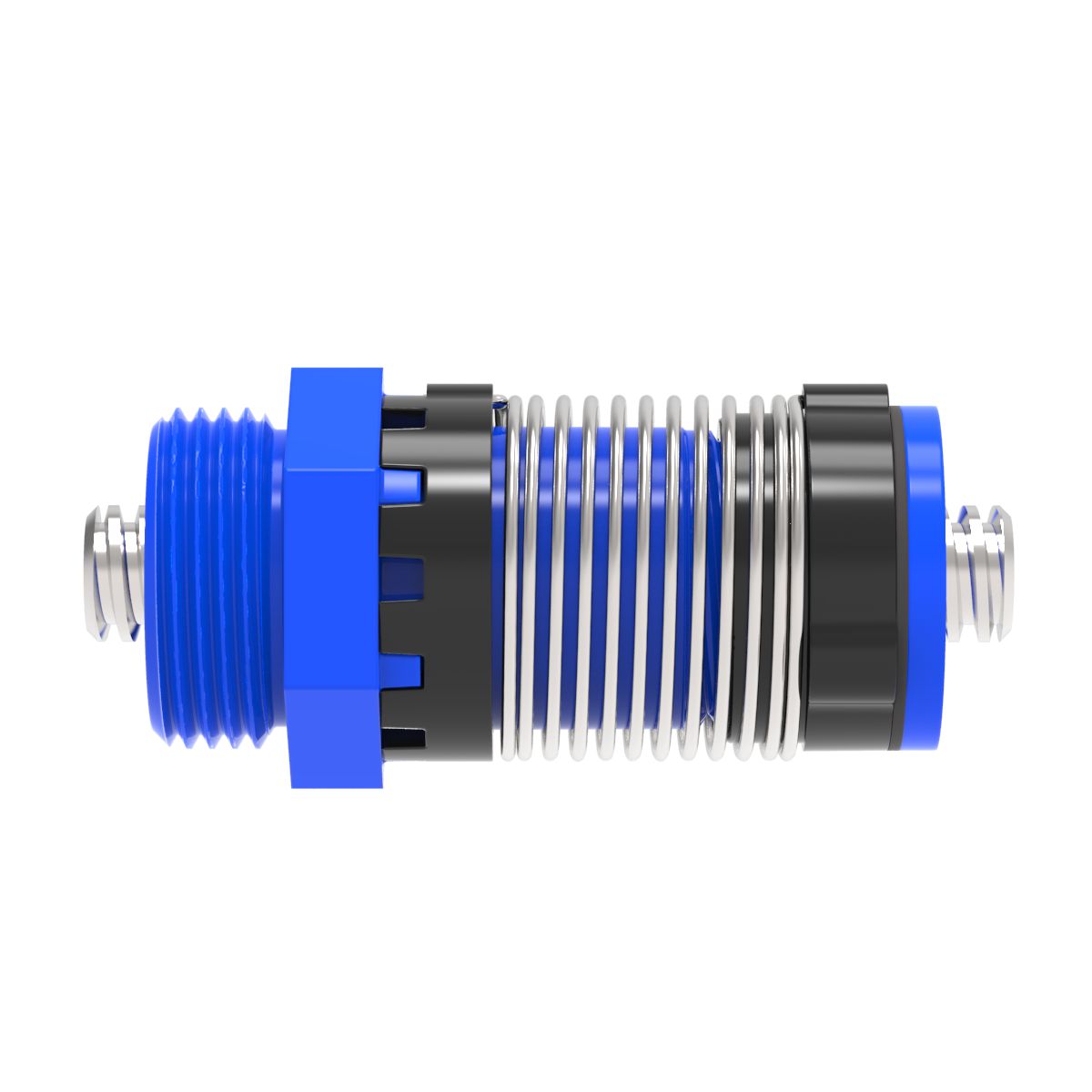

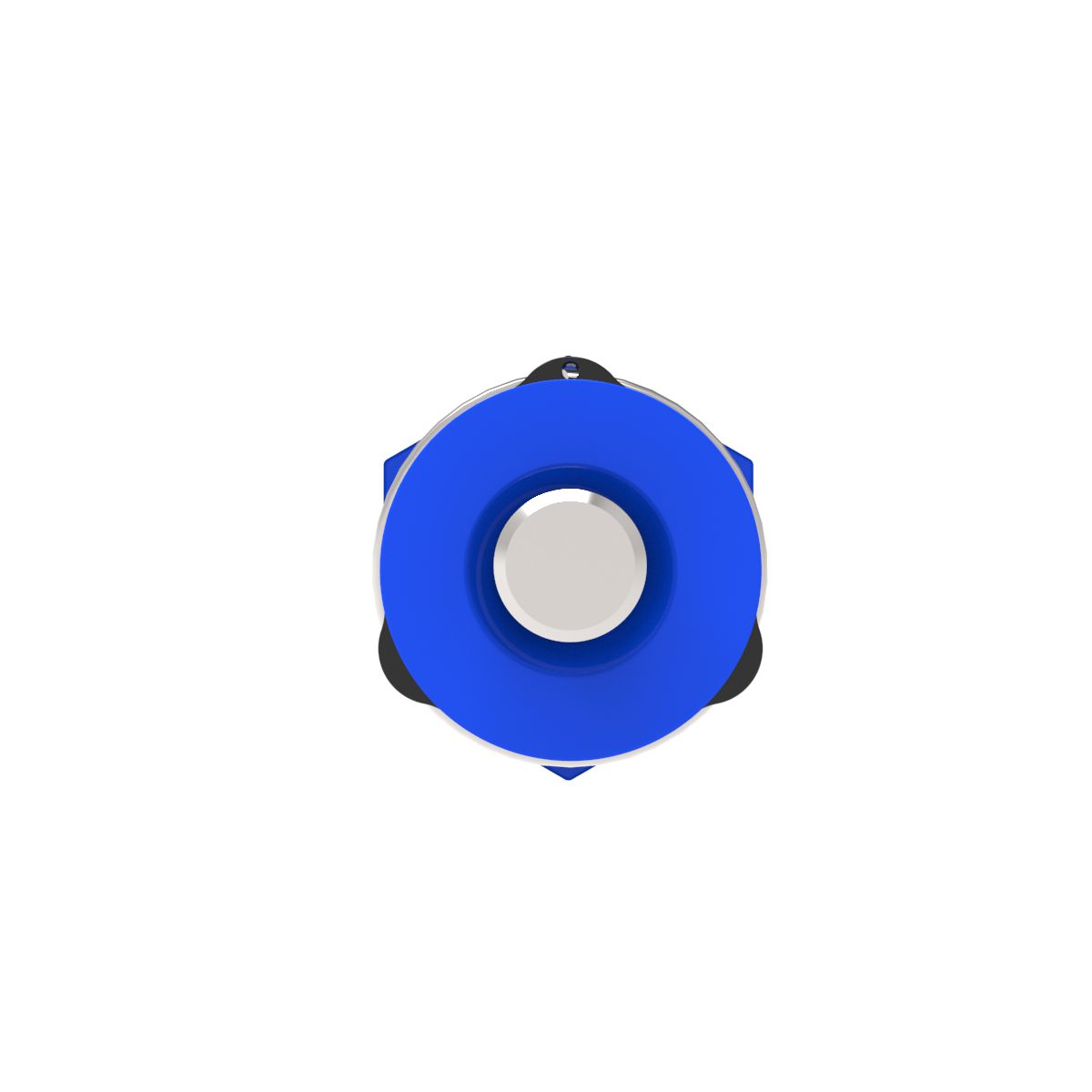

Name: Threaded Torsional Anti-backlash Nut (KTA)
SKU: 292515
Price: 99.06 USD
Availability: InStock

Anti-Backlash Nut Life with H10X Coating (in)	200 to 250 Million
Connection Type	Threaded
Diameter Code	55
Dynamic Load Capacity (lbs)	75

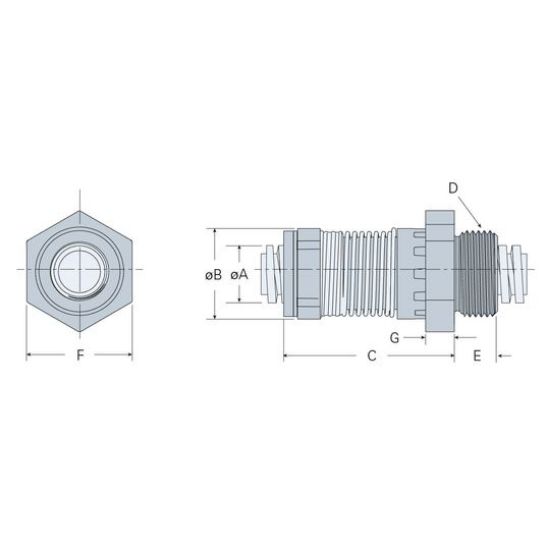

E - Thread Length (in)	0.370
Efficiency (%)	80.69443303
Flange Part No - Round	HF60
Flange Weight (lbs)	0.14
G - Hex Thickness (in)	0.310
Imperial or Metric	FALSE
Lead (mm)	70
Lead Accuracy +/- (in/in):	0.0003
Lead Code	M70
Lead Time	2 Weeks
Material	Helital
Mating Screw Part No	055M70R
Maximum Axial Lash (in)	FALSE
Nominal Diameter A (mm)	14
Nut Code	KTA
Nut Diameter B (in)	1.300
Nut Length C (in)	2.500
Nut Size	5
Nut Type	Torsional Anti-Backlash Nut with mounting threads
Nut Weight (lbs)	0.06
Pitch (in)	0.197
Pitch (mm)	5.000
Product Category	Lead Screw Nut
Product Sub Category	Anti-Backlash Nut
Product Sub Category 1	Torsional
Standard Operating Temperature Range (F°)	32-200
Starts	14
Thread Class	Centralizing
Thread Direction	RH
Thread Type	High Helix
Threads Per Inch	5.08001016
Turns Per Inch of Travel (in)	0.363
Type 1,2,3	10
Type 4	6

Threaded Torsional Anti-backlash Nut (KTA) KTA055M70R
