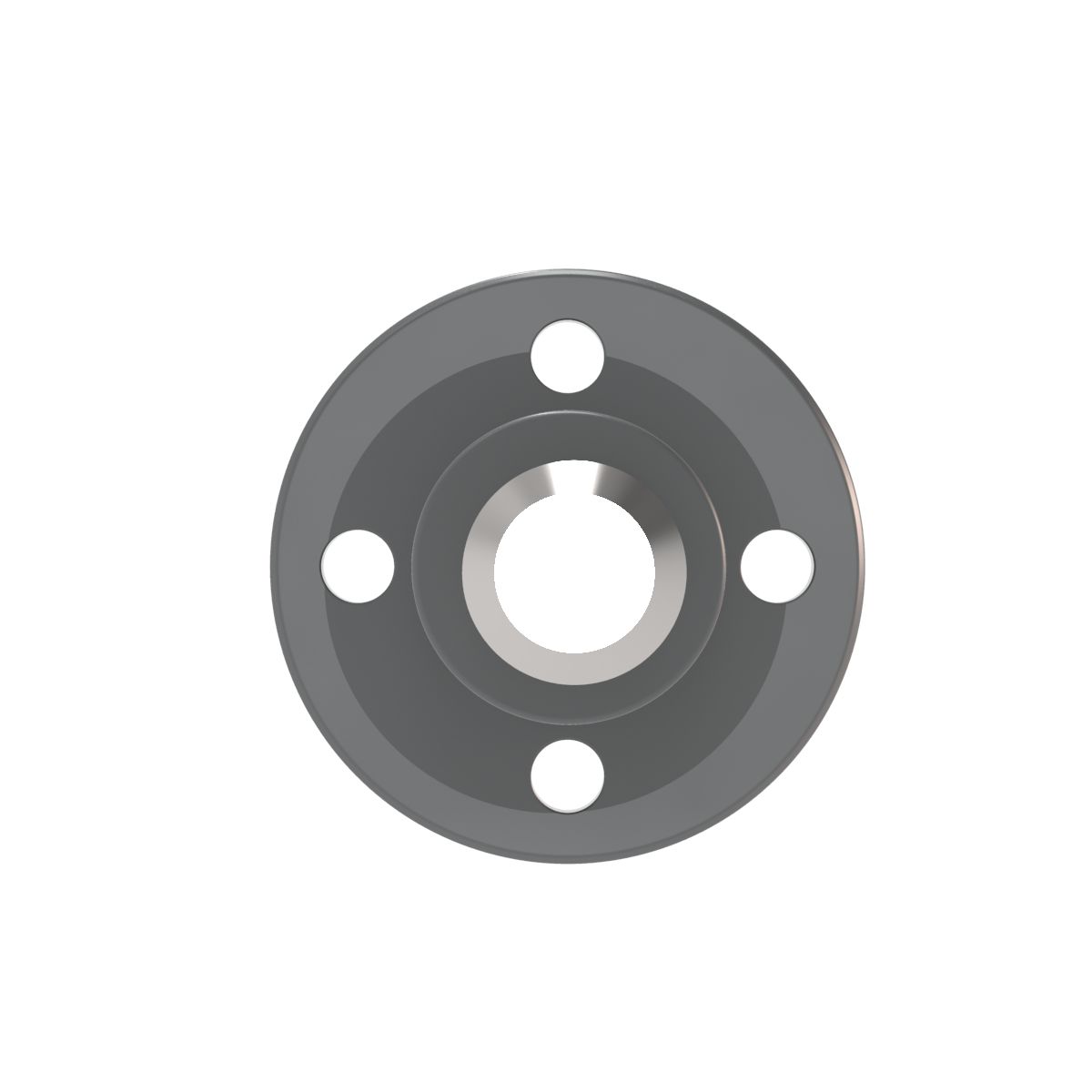

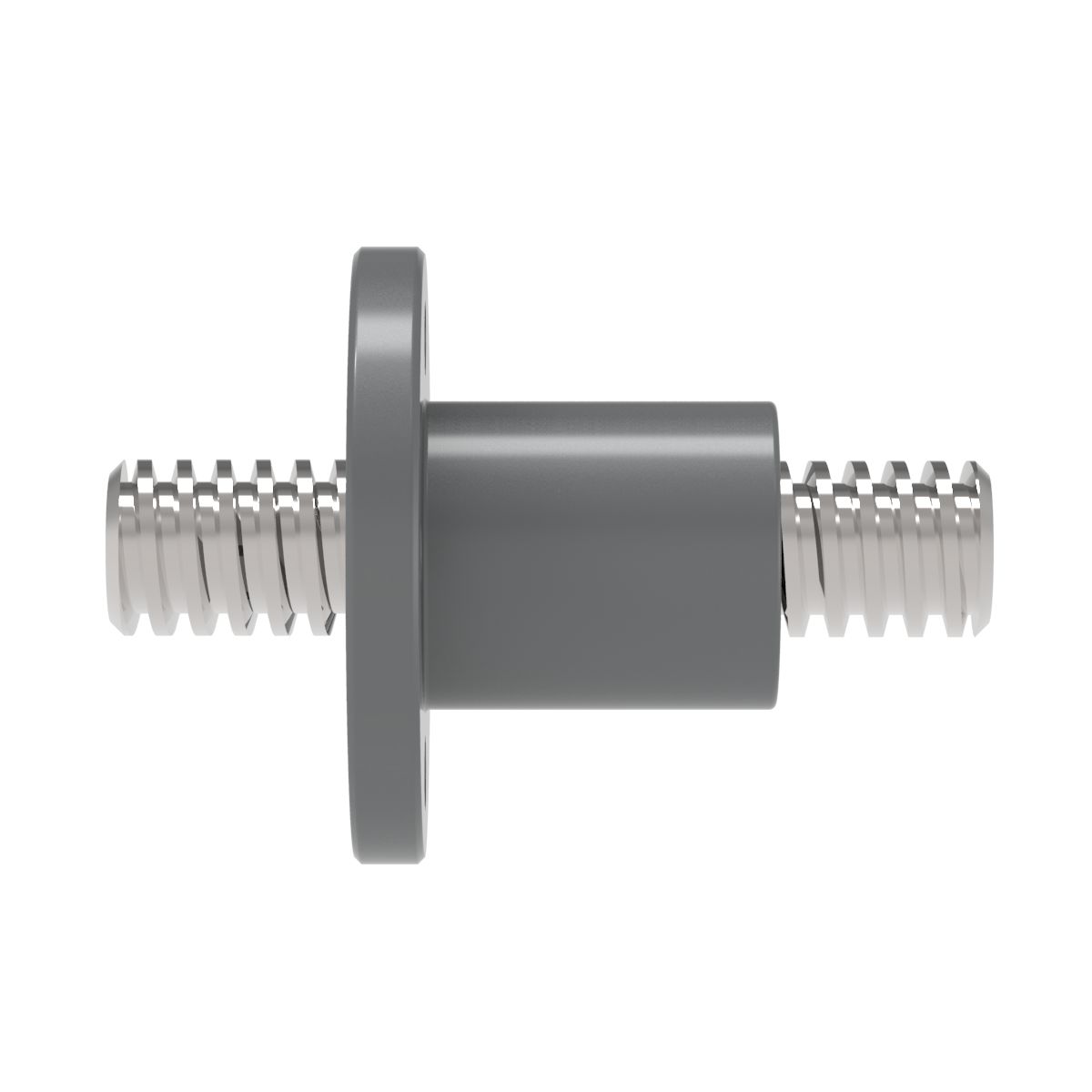

Name: Round Flange Heavy Load Nut (HLR)
SKU: 297956
Price: 76.14 USD
Availability: InStock

Anti-Backlash Nut Life with H10X Coating (in)	NA - Typical Backlash 0.003 to 0.011
Anti-Backlash Nut Life without H10X Coating (in)	NA - Typical Backlash 0.003 to 0.010
Connection Type	Flanged

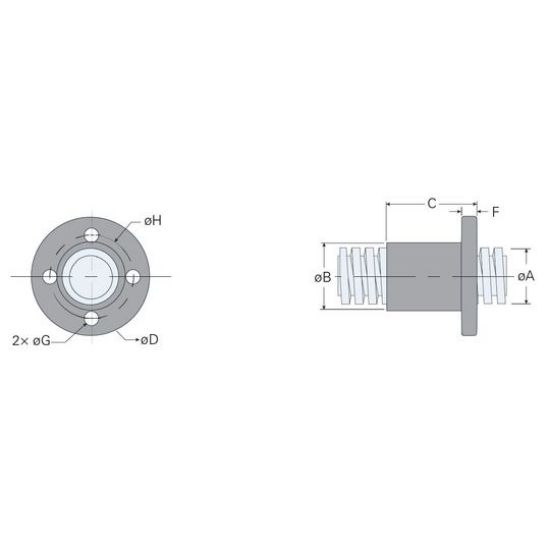

D - Flange Diameter (in)	1.125
Diameter Code	37
Dynamic Load Capacity (lbs)	75
Efficiency (%)	70.15066896
G - Slot Width (in)	0.144
H - Bolt Circle Diameter (in)	0.875
Imperial or Metric	TRUE
Lead (in)	0.500
Lead Accuracy +/- (in/in)	0.0003
Lead Code	--
Lead Time	2 Weeks
Material	TPS Heavy Load Resin
Mating Screw Part No	3/8-2(4) LH
Nominal Diameter A (in)	0.375
Nut Code	HLR
Nut Diameter B (in)	0.625
Nut Length C (in)	0.750
Nut Size	3
Nut Type	Standard nut with mounting flange
Nut Weight (lb)	0.04
Pitch (in)	0.125
Pitch (mm)	3.175
Product Category	Lead Screw Nut
Product Sub Category	Freewheeling Nuts
Product Sub Category 1	Heavy Load Nuts
Standard Operating Temperature Range (F°)	32-200
Starts	4
Thread Class	Centralizing
Thread Direction	LH
Thread Type	Stub Acme
Threads Per Inch	8
Turns Per Inch of Travel (in)	2
Type 1,2,3	6
Type 4	4

Round Flange Heavy Load Nut (HLR) HLR3/8-2(4) LH
