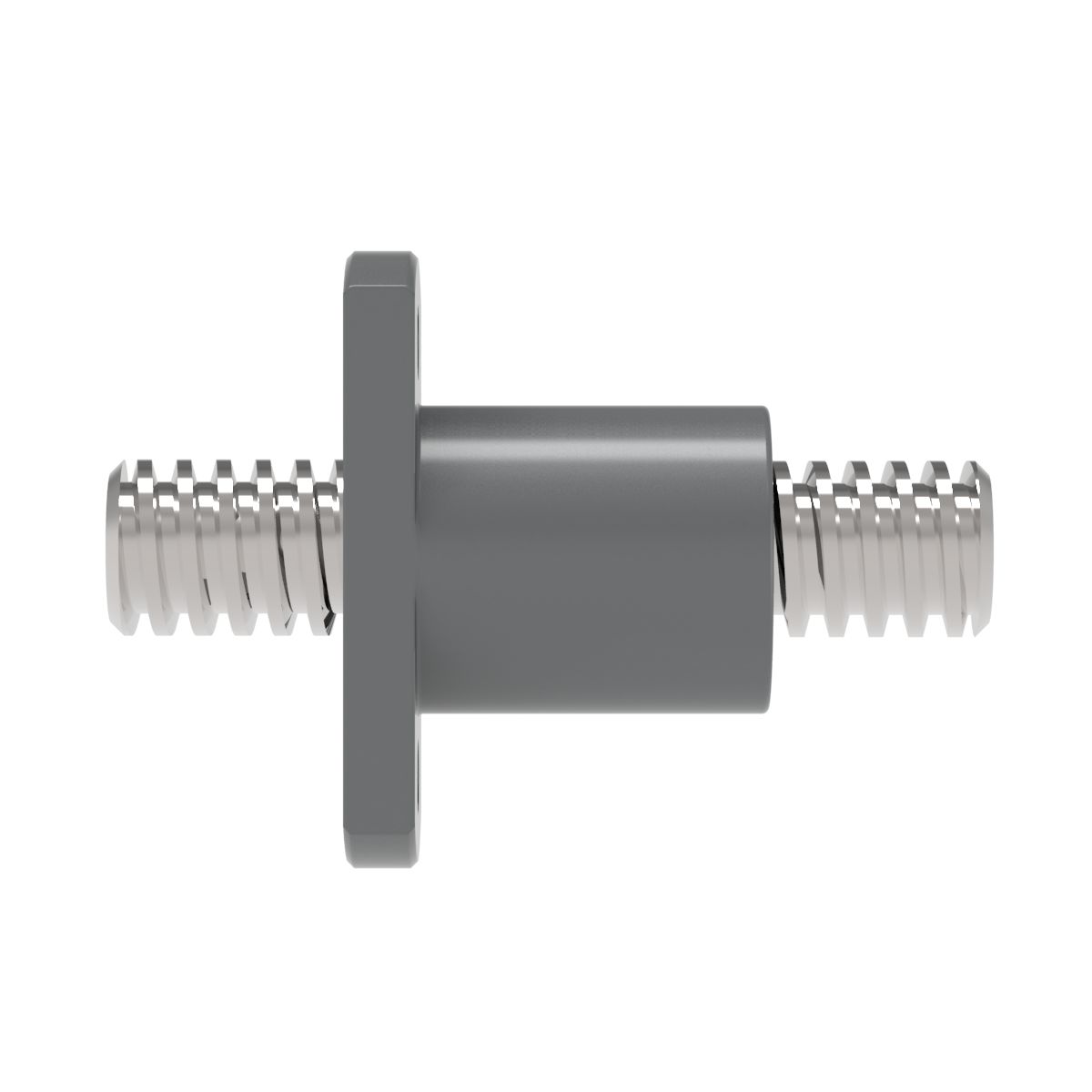

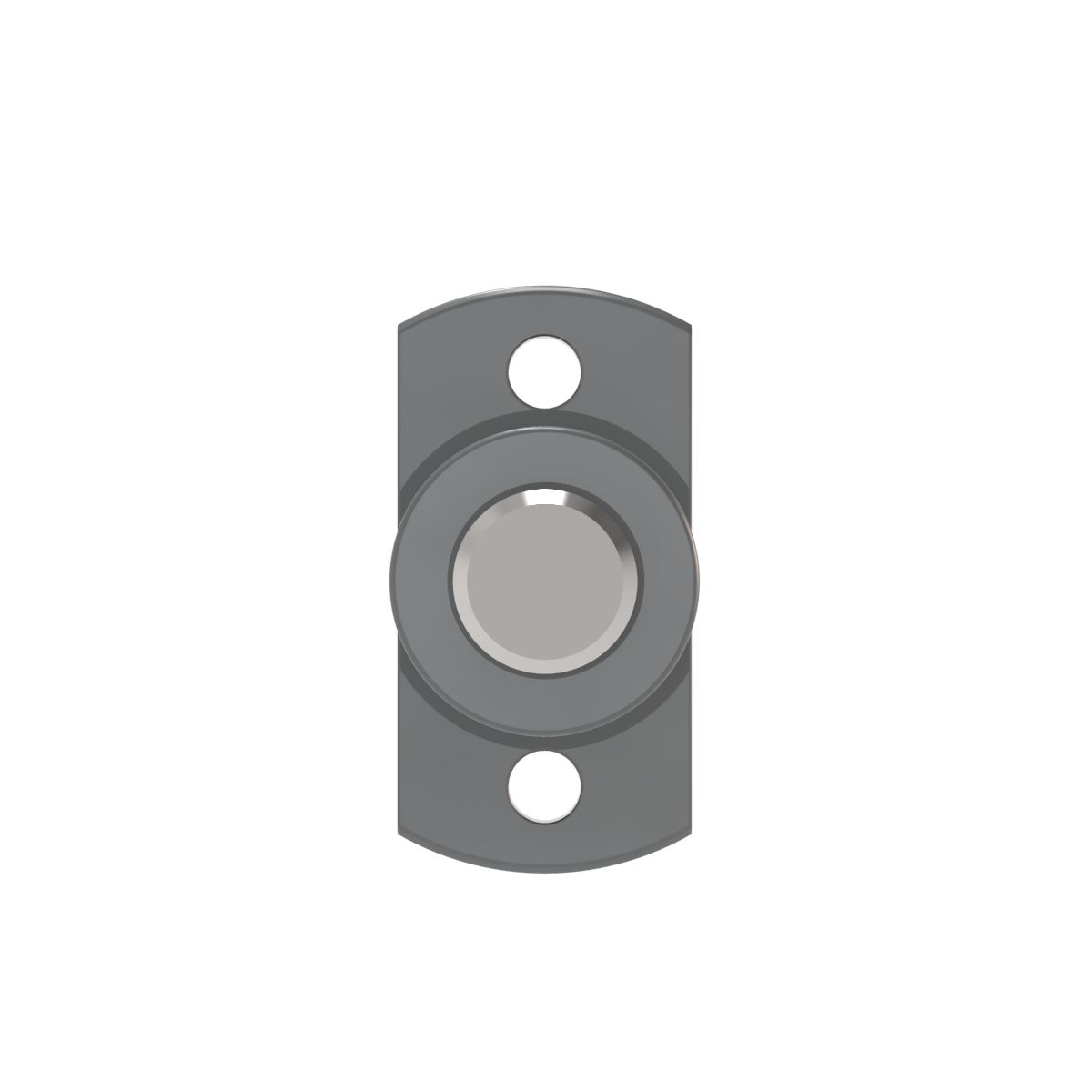

Name: Compact Flange Heavy Load Nut (HLC)
SKU: 297655
Price: 101.72 USD
Availability: InStock

Anti-Backlash Nut Life with H10X Coating (in)	NA - Typical Backlash 0.003 to 0.011
Anti-Backlash Nut Life without H10X Coating (in)	NA - Typical Backlash 0.003 to 0.010
Connection Type	Flanged

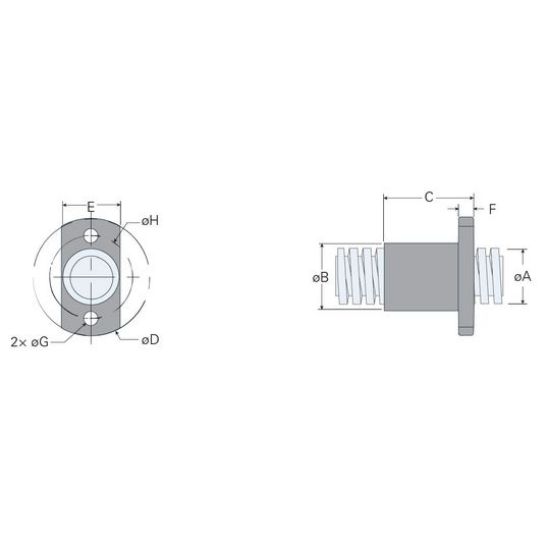

D - Flange Diameter (in)	1.750
Diameter Code	63
Dynamic Load Capacity (lbs)	225
Efficiency (%)	65.07572213
G - Slot Width (in)	0.221
H - Bolt Circle Diameter (in)	1.438
Imperial or Metric	TRUE
Lead (in)	3.150
Lead Accuracy +/- (in/in)	0.0003
Lead Code	M80
Lead Time	2 Weeks
Material	TPS Heavy Load Resin
Mating Screw Part No	063M80L
Nominal Diameter A (in)	0.630
Nut Code	HLC
Nut Diameter B (in)	1.125
Nut Length C (in)	1.250
Nut Size	5
Nut Type	Standard nut with mounting flange
Pitch (in)	0.197
Pitch (mm)	5.000
Product Category	Lead Screw Nut
Product Sub Category	Freewheeling Nuts
Product Sub Category 1	Heavy Load Nuts
Standard Operating Temperature Range (F°)	32-200
Starts	16
Thread Class	Centralizing
Thread Direction	LH
Thread Type	High Helix
Threads Per Inch	5.08001016
Turns Per Inch of Travel (in)	0.318
Type 1,2,3	12
Type 4	8*

Compact Flange Heavy Load Nut (HLC) HLC063M80L
