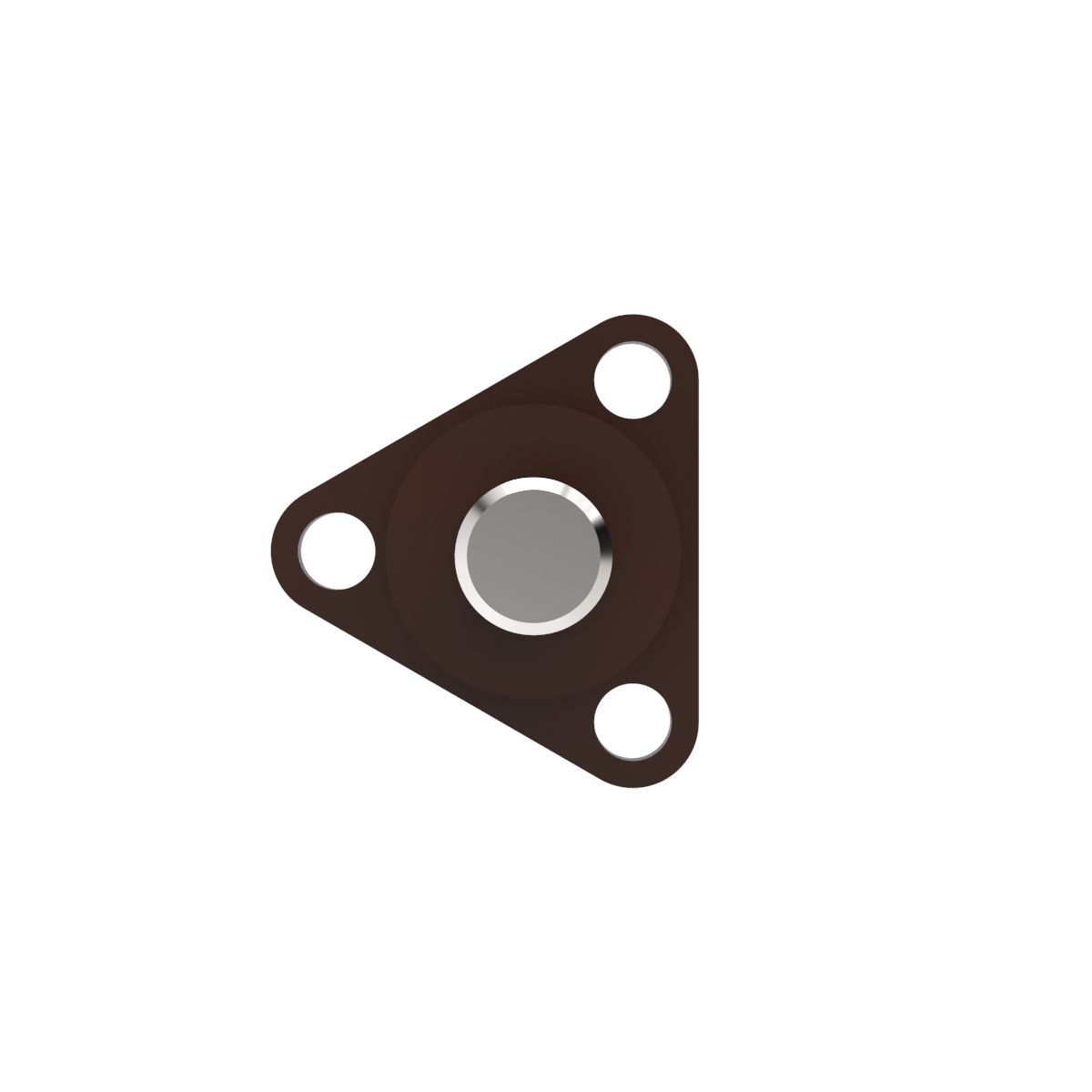

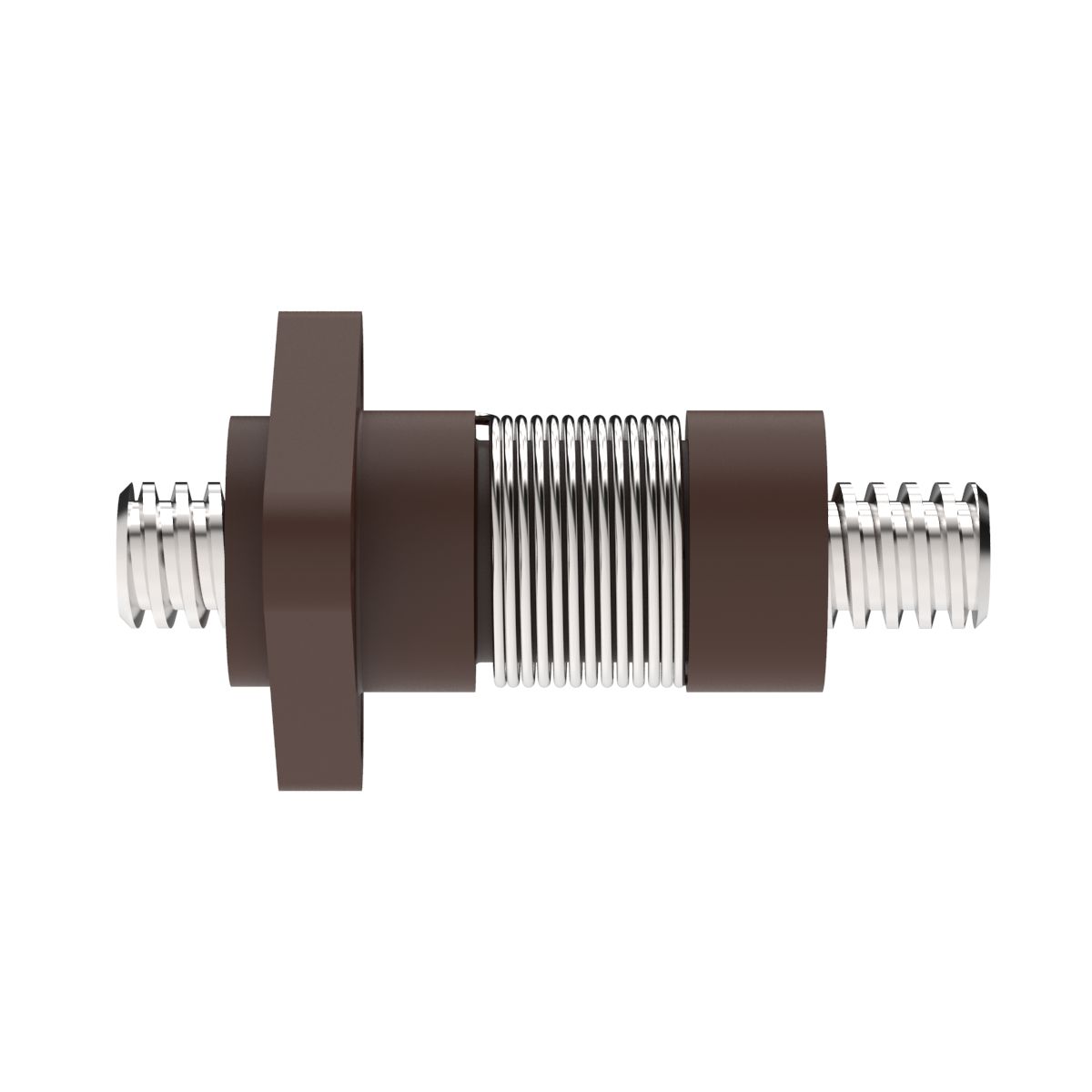

Name: Flanged Torsional Anti-Backlash Nut (GFD)
SKU: 295039
Availability: InStock

Anti-Backlash Nut Life with H10X Coating (in)	180-230 Million
Anti-Backlash Nut Life without H10X Coating (in)	80 to 100 Million
Connection Type	Flanged

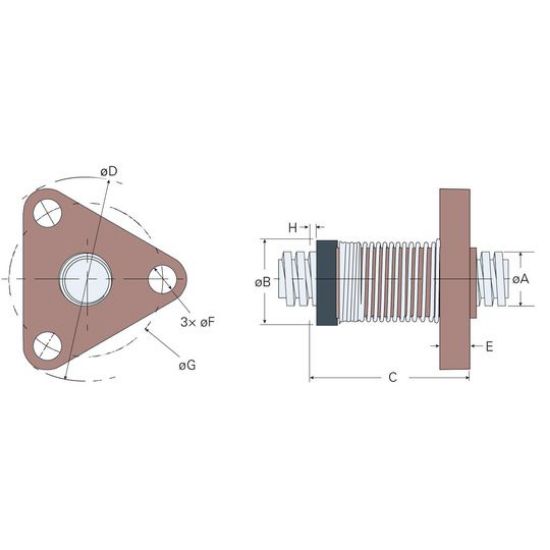

D - Flange Diameter (in)	1
Diameter Code	25
Dynamic Load Capacity (lbs)	75
E - Flange Thickness (in)	0.160
Efficiency (%)	44.27734887
F - Slot Width/Hole Diameter (in)	0.143
G - Bolt Circle Diameter (in)	0.750
Imperial or Metric	TRUE
Lead (in)	0.048
Lead Accuracy +/- (in/in)	0.0003
Lead Code	48
Lead Time	2 Weeks
Material	Delrin AF
Mating Screw Part No	025048R
Maximum Axial Lash (in)	FALSE
Nominal Diameter A (in)	0.250
Nut Code	GFD
Nut Diameter B (in)	0.520
Nut Length C (in)	1.100
Nut Size	2
Nut Type	Torsional anti-backlash nut with mounting flange
Nut Weight (lb)	0.02
Pitch (in)	0.048
Pitch (mm)	1.219
Product Category	Lead Screw Nut
Product Sub Category	Anti-Backlash Nut
Product Sub Category 1	Torsional
Standard Operating Temperature Range (F°)	32-200
Starts	1
Thread Class	Centralizing
Thread Direction	RH
Thread Type	Modified Acme
Threads Per Inch	20.83333333
Turns Per Inch of Travel (in)	20.833
Type 1,2,3	4
Type 4	3*

Flanged Torsional Anti-Backlash Nut (GFD) GFD025048R
