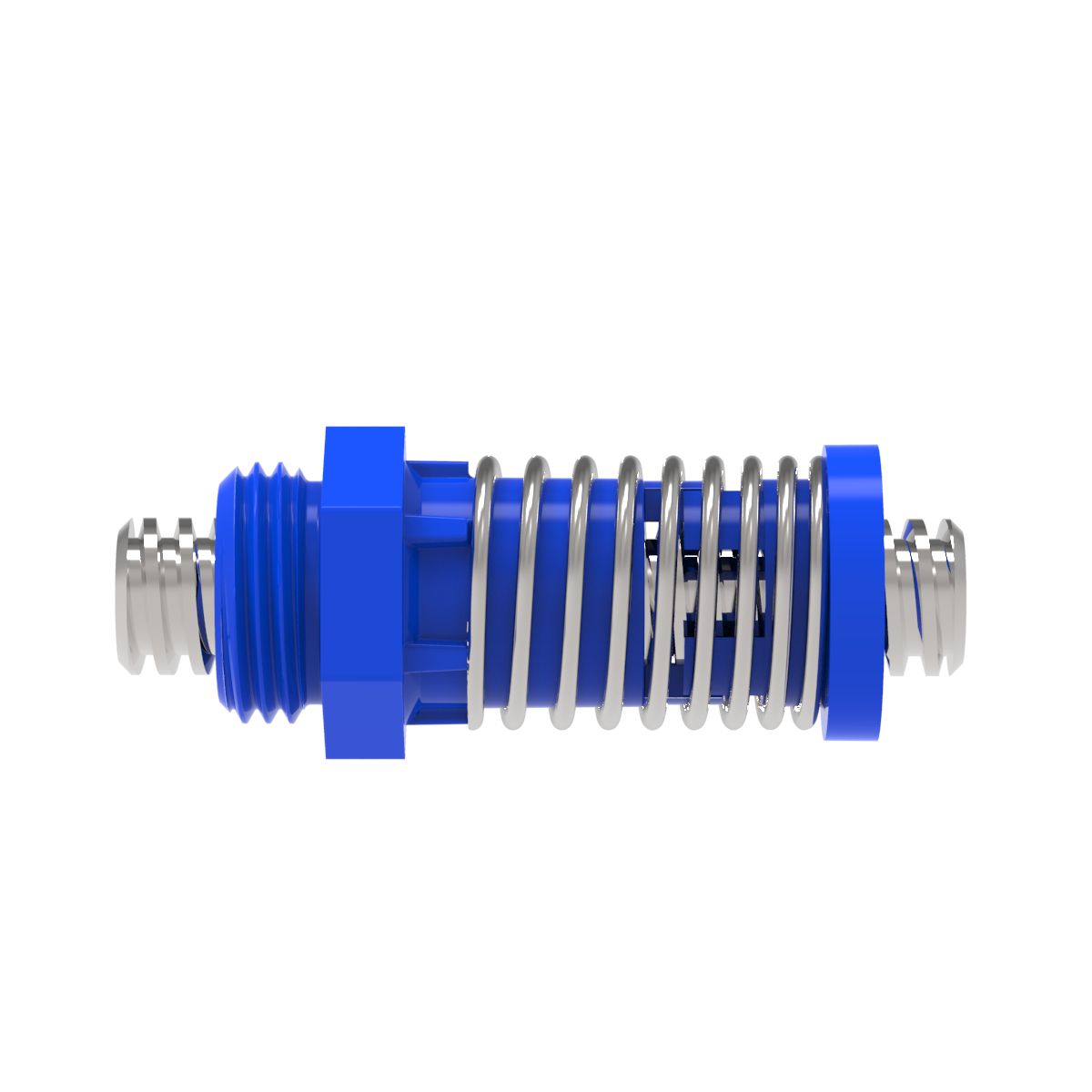

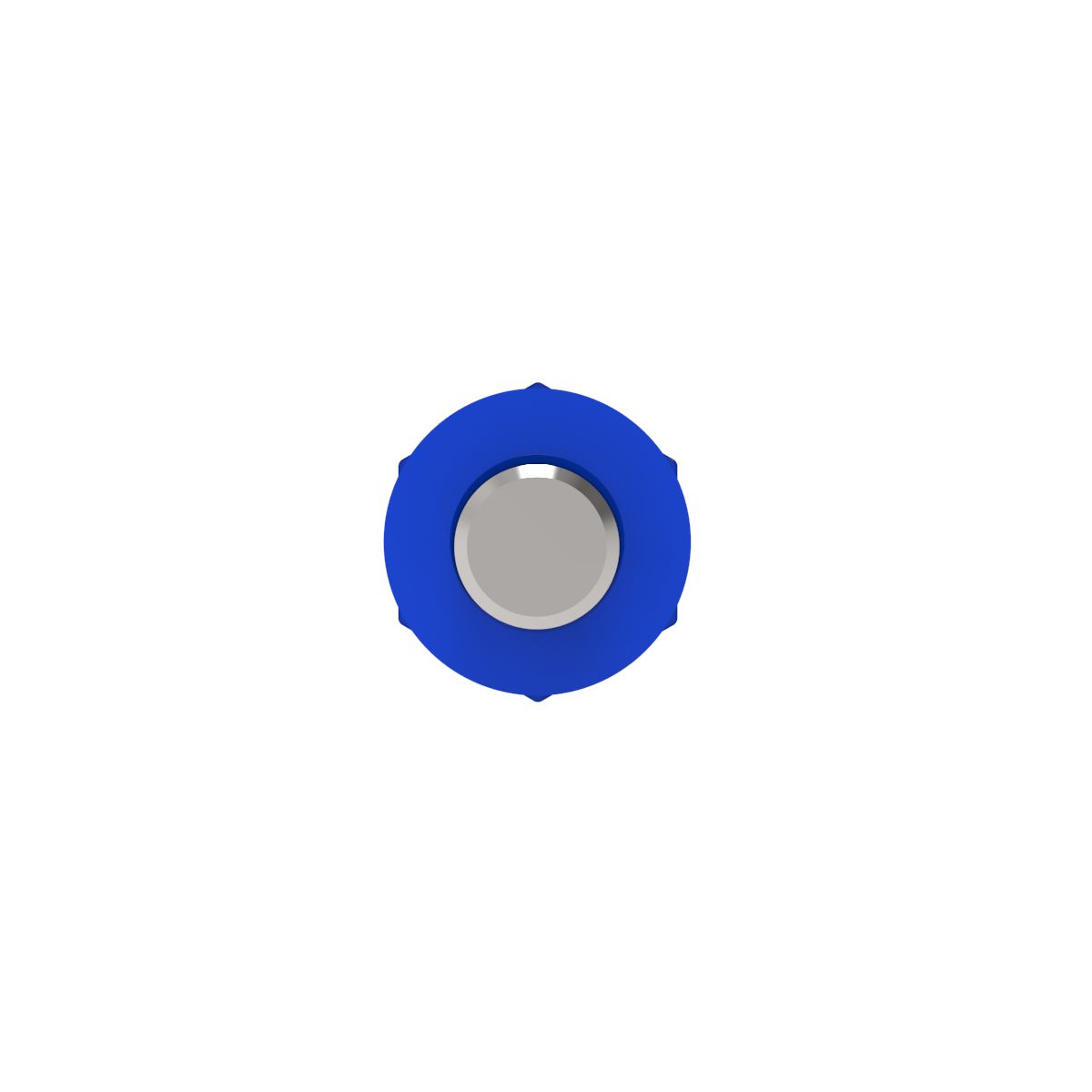

Name: Threaded Axial Anti-backlash Nut (ATA)
SKU: 281872
Price: 229.86 USD
Availability: InStock

Anti-Backlash Nut Life with H10X Coating (in)	150-200 Million
Connection Type	Threaded
Diameter Code	100
Dynamic Load Capacity (lbs)	530
Efficiency (%)	46.54083076
Flange Part No - Round	HF75

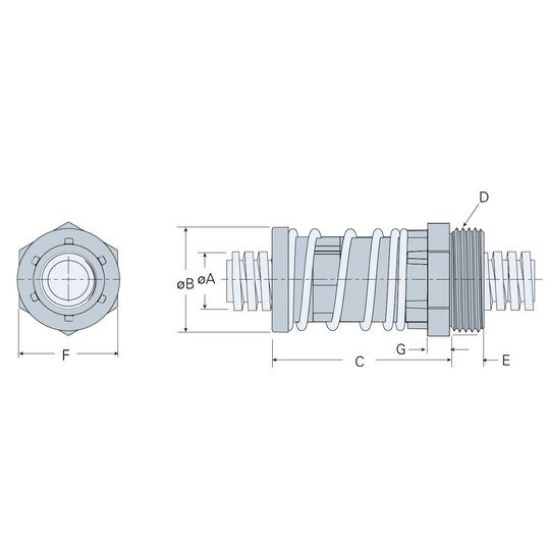

Hex Across Flats F (in)	1.437
Hex Thickness G (in)	0.310
Imperial or Metric	TRUE
Lead (in)	0.200
Lead Accuracy +/- (in/in)	0.0003
Lead Code	200
Lead Time	14 days
Material	Helital
Mating Screw Part No	100200R
Maximum Axial Lash (in)	FALSE
Nominal Diameter A (in)	1
Nut Code	ATA
Nut Diameter B (in)	1.500
Nut Length C (in)	2.675
Nut Size	6
Nut Type	Axial Anti-Backlash Nut with mounting threads
Nut Weight (lb):	0.13
Pitch (in)	0.200
Pitch (mm)	5.080
Product Category	Lead Screw Nut
Product Sub Category	Anti-Backlash Nut
Product Sub Category 1	Axial
Standard Operating Temperature Range (F°)	32-200
Starts	1
Thread Class	Centralizing
Thread Direction	RH
Thread Length E (in)	0.375
Thread Size D (in)	1-3/8""-16 UN
Thread Type	Acme
Threads Per Inch	5
Turns Per Inch of Travel (in)	5
Type 1,2,3	17
Type 4	10

Threaded Axial Anti-backlash Nut (ATA) ATA100200R
